Optical collimators also called non-imaging concentrators are optical components that can collect and project light from a source. Common examples include solar collectors that concentrate the sun's light and project it to heat a surface or direct it to solar panels. Another application is to control the hemispheric radiation of an LED. Non-imaging concentrators can reflect all incident radiation, to the receiver over a wide range of incidence angles.
Optical concentrators/collimators can be manufactured using reflective surfaces, but each reflection reduces the captured optical power. They can be made with microlenses, fresnel lenses, with parabolic configurations, and many other possibilities.

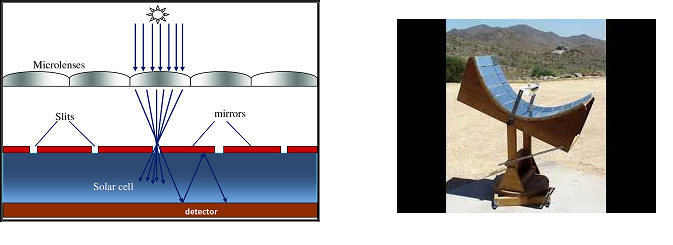

Figure 1. Example of optical concentrators based on microlenses, and parabolic configurations. Images from: A.B. Hasanet al. and sky-light.org
Today we will review a newer style of collector called an RXI collimator. An RXI collimator is a device with two optical surfaces: one on the front and one on the back. The collimator gets its name from the ray paths it describes. A ray from the source is first reflected by the TIR on the front surface (I), then specularly onto the mirrored rear surface (X), and finally refracted on the front surface before leaving the collimator (R). Because the TIR criteria for rays impinging on this surface for the first time are not satisfied, a small center region on the front surface must usually be metalized.

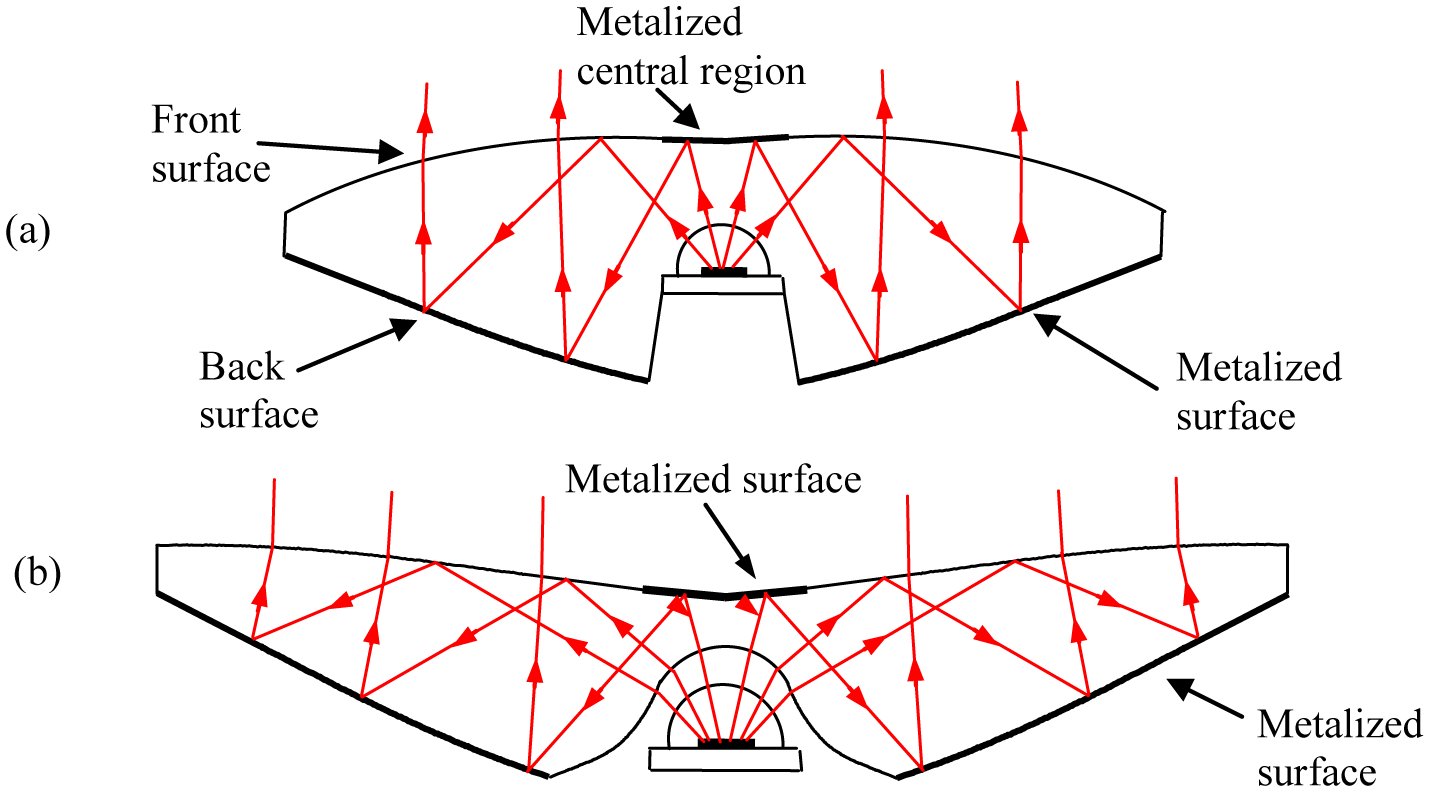

Figure 2 Designs of RXI collimators using metalized surface. Image from: Grabovičkić, Dejan et al.
It is possible, however, to design an RXI collimator without the need of metalized surfaces (Figure 3), which reduces the manufacturing costs. This mirrorless RXI design replaces the lateral metalized surfaces with a grooved surface, where the angle of the grooves is carefully calculated. In this design, a ray coming from a light source refracts first on the entrance surface, then reflects by TIR at the top surfaces, and reaches the back surface. On the back surface the ray is reflected twice by TIR at each groove side and redirected toward the front surface. The central metalized surface can be replaced by a lens.

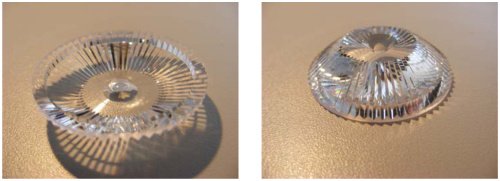

Figure 3. Mirrorless RXI collimator fabricated in PMMA. Image from Grabovičkić, Dejan et al.
